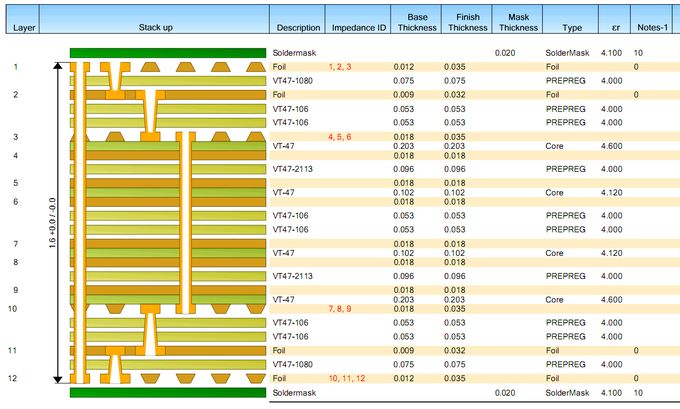

Here is the final & complete PCB stackup document based on what the iMX6 Rex module was build:
Download in MM / Download in MILS

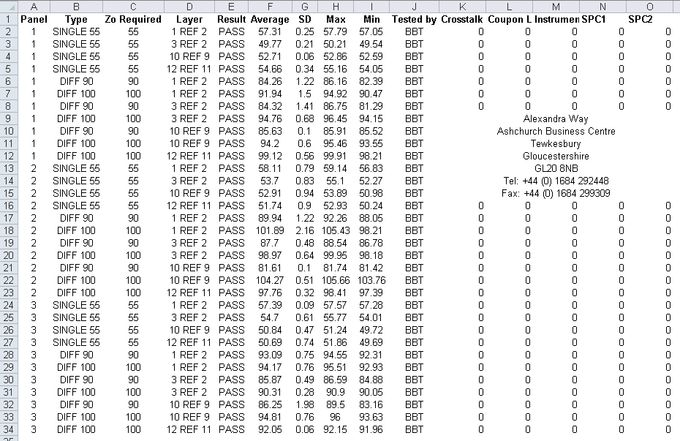

This is how the impedance test report looks like (results from the measuring the real PCB):
Thanks to Exception PCB, the iMX6 Rex PCB V1I1 manufacturer, for providing these documents.
