iMX6 Rex – LVDS and Audio codec are working

Posted on January 6, 2014 by Robert Feranec

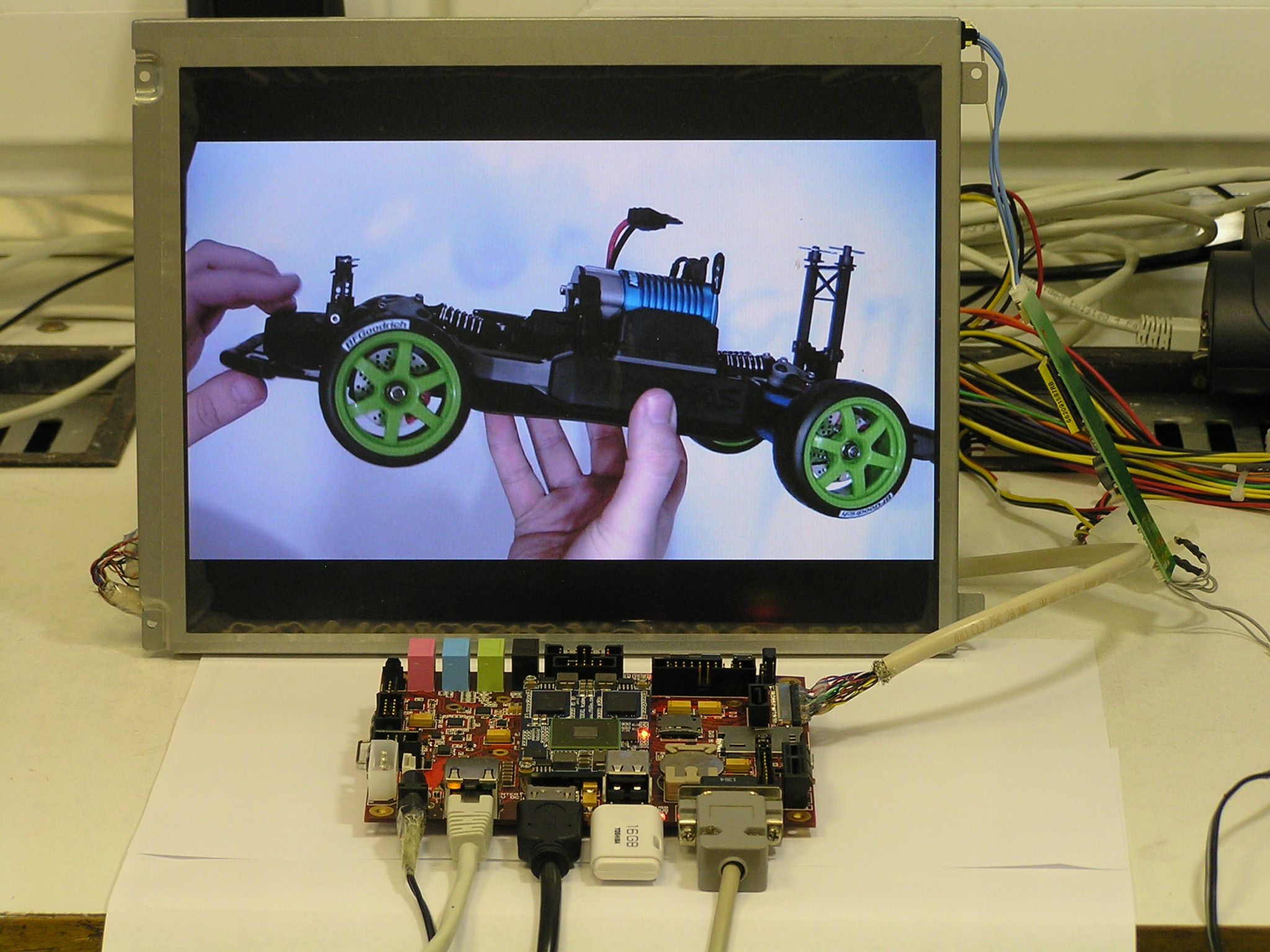

We have connected LVDS and added Linux driver for our audio codec. Tested and working oki.

Ronaldo Nunez

Nice Job! This project is awesome! Which display are you using? Is it 7 inches?
- http://www.fedevel.com Robert Feranec

  Thank you, It is this one

  T-51756D121J-FW-A-AA (LCD 12.1″ TFT MOD 1024X768 XGA)

  http://www.digikey.com/product-search/en/optoelectronics/display-modules-lcd-oled-graphic/524918?k=T-51756D121J-FW-A-AA
Jeevan

Can you please suggest us the 7″ LCD with Touch screen over I2C, which can used with iMX6 SABRE for automotive Infotainment.
